LT6DPCB rfid tags in manufacturing

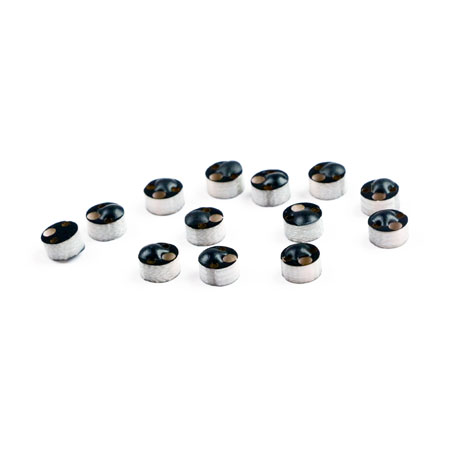

- Lanchitag offers a wide range of RFID for in manufacturing across different industries and applications. LT6DPCB is a cheap rfid tag designed to embed into tiny indentations of metallic parts and components. The housing is made of PCB/FR4 and fulfills ingress protection IP 68. size only dia 6mm, weight 0.5g,When it is attached to the metal surface, the reading distance can up to 0.85 meters by a fixed reader. You can use our cheap rfid tag LT6DPCB rfid tag to track IT asset tracking, inventory control, small tools, manufacturing equipment, computers, machinery, returnable containers and other metal objects.
| Physical Specification: |
| Size | Diameter6mm, (Hole: D2mmx1) |
| Thickness | 4.0mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 0.85m - (US) 902-928 MHz, on metal |
| Up to 0.75m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.45m - (US) 902-928 MHz, on metal |
| Up to 0.45m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
