Smallest RFID tag LT5DPCB designed for special RFID applications
-

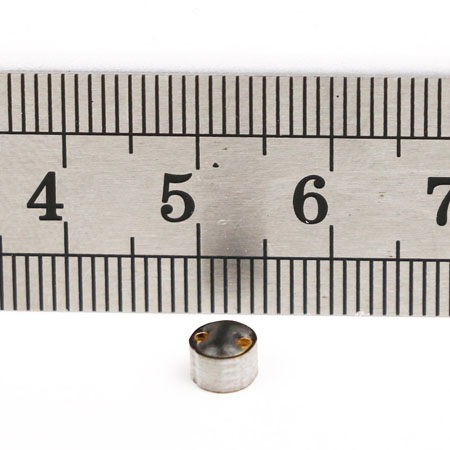

Lanchitag offers a wide range of rfid reader and tag available in several designs and depending on the type of application. LT5DPCB is a smallest rfid tag, characterized by small size ( dia only 5mm with a height of 4.0 mm) and available in UHF (865MHz to 928MHz) band and contains a 96-bit EPC field that is programmable by the user. This Smallest RFID tag LT5DPCB has been designed for special RFID applications, like asset management in the industrial context, the maintenance of tools and machinery, the automatic identification of small metal objects.
| Physical Specification: |
| Size | dia5mm |
| Thickness | 4.0mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 1.0m - (US) 902-928 MHz, on metal |
| Up to 0.8m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.6m - (US) 902-928 MHz, on metal |
| Up to 0.4m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
