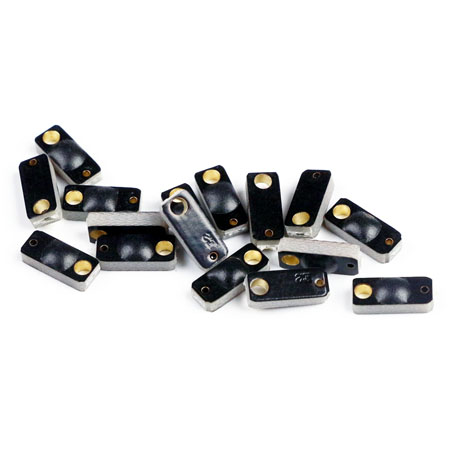

Very small rfid tag for small metal tools tracking
- Lanchitag provides a large selection of very small RFID tags that are designed to be used in many applications where fitting into smaller areas is required to track and monitor small metal assets. LT0410PCB is very small rfid tags in 10x4mm size, weight 0.5g, Its small form factor makes it the perfect rfid inventory tag for tracking laptops, servers in IT, vehicle tracking identification and other small metal tools. If you Want to know the cost of an rfid tag or more information about our small rfid tag customization service, please contact kellychen@lanchitag.com today.
| Physical Specification: |
| Size | 10x4mm (Hole:D2mm) |
| Thickness | 2.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 1.35m - (US) 902-928 MHz, on metal |
| Up to 1.35m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.9m - (US) 902-928 MHz, on metal |
| Up to 0.75m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
