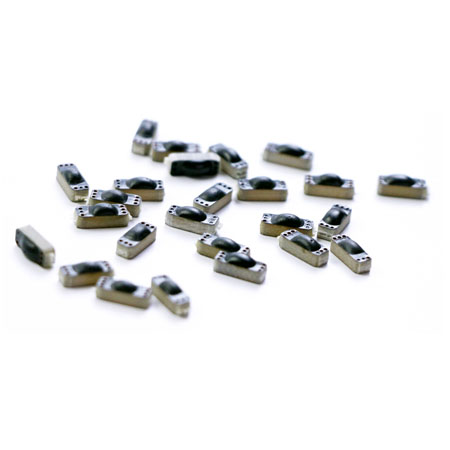

rfid inventory tags LT0308PCB for metal objects tracking
- Lanchitag offers a wide range of RFID tags for metal surfaces, LT0308PCB is a 8x3mm size rfid inventory tags designed specifically for metal objects tracking. Its small form factor makes it the perfect rfid inventory tag for tracking laptops, servers in IT, vehicle tracking identification and other small metal tools. IP68 waterproof protection makes it survive well in outdoor harsh environment. This UHF RFID tag is compliant with EPC class 1 Gen 2 / ISO18000-6C protocols and offers a long read range of up to 0.95 meters on metal surfaces.
| Physical Specification: |
| Size | 8x3mm |
| Thickness | 3.0mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 0.95m - (US) 902-928 MHz, on metal |
| Up to 0.9m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.5m - (US) 902-928 MHz, on metal |
| Up to 0.45m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
