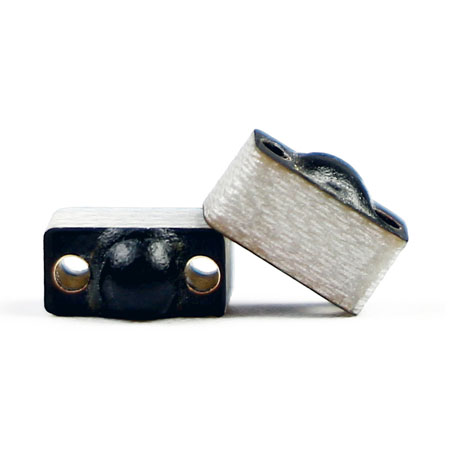

small rfid tag LT0306PCB for metal objects tracking
-
LT0306PCB is a small rfid tag for small size metal objects tracking, which is water-proof, anti-collision, anti-metal and durable. Metal rfid tags LT0306PCB is an good ideal solution for tracking small metallic instruments. LT0306PCB measures at 6x3mm by 4mm thick with a read distance of 0.9 meters. Small size rfid tag LT0306PCB is widely application in logistics, industrial production and storage, warehouse management, access control, pharmaceutical and patient tracking, retail, sports timing, nfc, aviation and auto production, libraries, etc.
| Physical Specification: |
| Size | 6.0x3.0mm |
| Thickness | 4.0mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 0.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 0.9m - (US) 902-928 MHz, on metal |
| Up to 0.8m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 0.5m - (US) 902-928 MHz, on metal |
| Up to 0.45m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
