LT16DPCB for RFID asset tracking and RFID logistics tracking

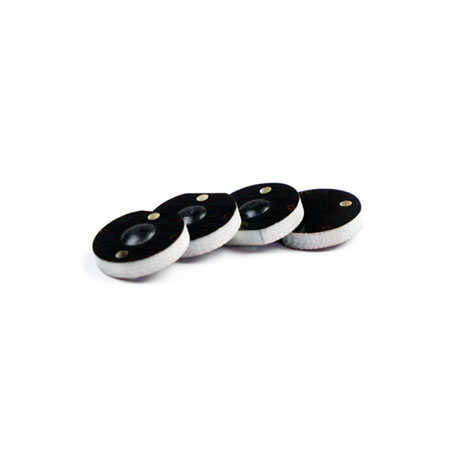

- LT16DPCB is UHF RFID tag, which can be used for rfid asset tracking and rfid logistics tracking solution. LT16DPCB RFID asset tracking tag operates on the US frequency 902-928MHZ and EUR frequency 865-868MHZ compliant with EPC Class1 Gen2, ISO18000-6C with 2.6 meters read range using fixed reader. it is shape in size dia 16mm,thickness in 3.0mm ,with 2 holes in diameter 2mm ,chip in Alien H3 EPC number can up to 480 bits ,user 512 bits ,TID 64bits ,which the data retention can up to 50 years ,write cycles in 100000 times.
| Physical Specification: |
| Size | diameter 16mmxT3.0mm (Hole:D2mm*2) |
| Thickness | 3.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 1.3g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 2.6m - (US) 902-928 MHz, on metal |
| Up to 2.4m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 1.6m - (US) 902-928 MHz, on metal |
| Up to 1.5m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
