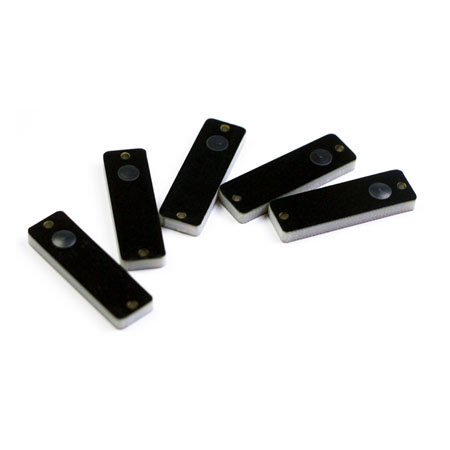

On metal UHF Gen2 rfid tags LT1033PCB
- LT1033PCB are UHF gen2 rfid tags and offer a read range of up to 4.2 meters and 512 bit user read/write memory. LT1033PCB features the tag adopts waterproof design and has a compact appearance. its Size 33x10mm, thickness 3.5mm,weight 3.0g, This Smart rfid tags are ideal for applications that require exterior-mounted, low-cost, easily installed. It is suitable for a wide variety of automatic vehicle identification transportation applications, including electronic toll collection, airports and ground transportation management systems, parking access, and security access applications.
| Physical Specification: |
| Size | 33mmx10mm (Hole:D2mm) |
| Thickness | 3.5mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 3.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | US 902-928MHz, EU 865-868MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 4.2m - (US) 902-928 MHz, on metal |
| Up to 3.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 2.8m - (US) 902-928 MHz, on metal |
| Up to 2.5m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
