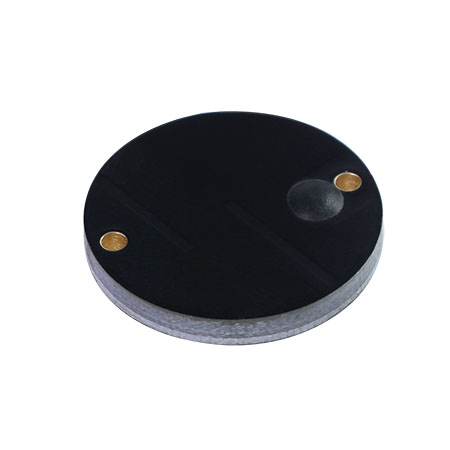

Round RFID tag OPPD25 work on metal surfaces
-
The PCBD25 is a round RFID tag with a 25 mm diameter, constructed from durable PCB material and optimized for use in metal environments. Encapsulating the Alien Higgs-9 chip, it delivers reliable performance and high data capacity, making it ideal for asset tracking, product management, and other identification tasks in complex and demanding conditions.
| Physical Specification: |
| Size | Dia25mm |
| Thickness | 3.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw, binding |
| Weight | 3.4g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (US)902～928MHz |
| IC Type | Alien Higgs-9 |
| Memory | EPC 96bits, (Up to 496 bits), USER 688bits, TID 48bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 2.3m - (US) 902-928 MHz, on metal |
| Read Range(handheld reader) | Up to 1.1m - (US) 902-928 MHz, on metal |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
