Home > products > PCB On metal RFID tags > UHF On metal RFID Tag PCB5010

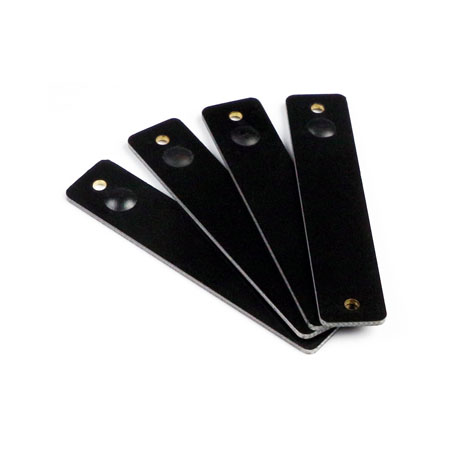

PCB5010 is a waterprof rfid tags and apply in vehicle tracking
- Vehicle rfid tag PCB5010 is a narrow shape and only 1.0mm thin waterproof rfid tags that can easily be on metal surface in some narrow position. it has rust resistance in wet and as well as waterproof and dust proof. When PCB5010 apply in vehicle tracking, which can be screw on plate position freely of the cars and trucks ,then you can easily to know what is the cars and truck situation ,and also know what is the subject on the cars and trucks only read the vehicle rfid tag once in the logistic application.
| Physical Specification: |
| Size | 50x10mm, (Hole: D2mm) |
| Thickness | 1.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 1.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 2.8m - (US) 902-928 MHz, on metal |
| Up to 2.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 1.9m - (US) 902-928 MHz, on metal |
| Up to 1.7m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
