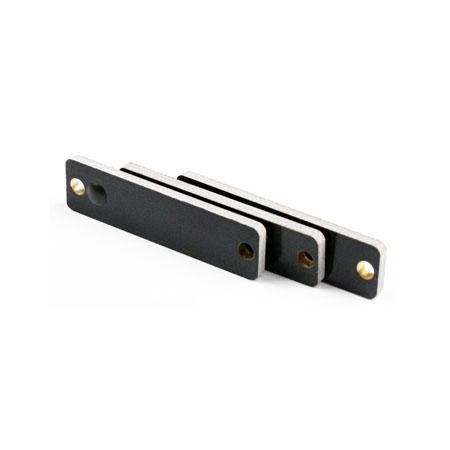

PCB4010 RFID tag for tools tracking
- PCB4010 is a good rfid tags for tools tracking application. The size 40*10mm is perfect size to get mounted on tools which has limits on the tag sizes. Reading distance up to 4.5 meters, with the steady shock resistant, waterproof function, dust proof performance, making it suitable for asset tracking applications. You can adopt the PCB4010 as fixed asset labels. The two holes at the ends of the tag, giving you a lot of convenience in mounting the tag with more options, like sticking, fixing by bolt.
| Physical Specification: |
| Size | 40x10mm, (Hole: D3mmx2) |
| Thickness | 2.1mm without IC bump, 2.7mm with IC bump |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 2.0g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 4.5m - (US) 902-928 MHz, on metal |
| Up to 4.2m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 3.0m - (US) 902-928 MHz, on metal |
| Up to 2.8m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
