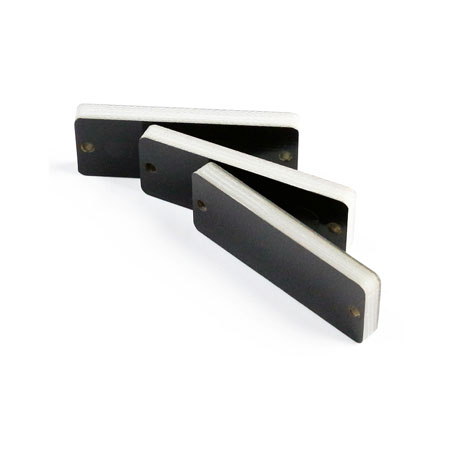

UHF tags PCB3613 for asset tracking in hospitals
- PCB3613 is a UHF Tag, which can be used for asset tracking in hospitals, it is widely used for medication, tools, and equipment monitoring tracking. Our UHF tag PCB3613 will help you substantially decrease the loss of hospital assets, cut asset search time, provide real-time data on the assets’ use, help monitor medications storage conditions and plan equipment maintenance. Its size 36x13mm, thickness 3.5mm and weight 3.5g, when PCB3613 tagging rfid for tools, it provide a long read range up to 4.7 meters.
| Physical Specification: |
| Size | 36x13mm, (Hole: D2mm) |
| Thickness | 3.5mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive, Screw |
| Weight | 3.5g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | US 902-928MHz, EU 865-868MHz |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 4.7m - (US) 902-928 MHz, on metal |
| Up to 4.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 2.7m - (US) 902-928 MHz, on metal |
| Up to 2.5m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
