Asset tracking rfid tags PCBD40 reading range up to 6.8 meters
-

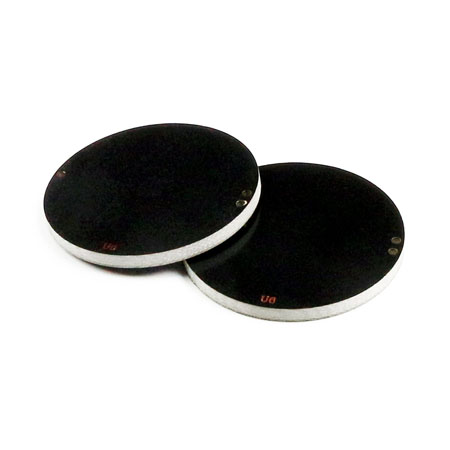

PCBD40 is a asset tracking rfid tags,which reading range can up to 6.8 meters when it mounted on metal surface. This RFID UHF tag is designed on PCB/FR-4 base material, solving the problem that RFID tags can’t work well on metal environment. It operates on 860 MHz to 960 MHz and is compatible with ISO18000-6C (EPC Class 1 Gen 2) standard. It is mainly used in retails, warehouse logistics management, IT asset management, inventory management, assets management, automotive component tracking, industrial manufacturing, etc.
| Physical Specification: |
| Size | dia40mm |
| Thickness | 3.0mm |
| Material | FR4(PCB) |
| Colour | Black ( White,red,green,blue..) |
| Mounting Methods | Adhesive |
| Weight | 8.2g |
| Functional Specifications: |
| Air Interface Protocol - Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Impinj Monza R6-P |
| Memory | EPC 128 bits, USER 64 bits, TID 96 bits |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 6.8m - (US) 902-928 MHz, on metal |
| Up to 6.5m - (EU) 865-869 MHz, on metal | |
| Read Range(handheld reader) | Up to 3.5m - (US) 902-928 MHz, on metal |
| Up to 3.5m - (EU) 865-869 MHz, on metal | |
| Warranty | 1 year |
| Environmental parameters: |
| IP Rating: | IP68 |
| Storage Temperature | -20 ～ +150℃ |
| Operation Temperature | -20 ～ +100℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
